Product Details
Features
Transparent | Modular | Lightweight | Self cooling | Protection IP67
Exclusive patent | Multiple density options | Clasp splicing | Wire fixation | Roll and bag transportation

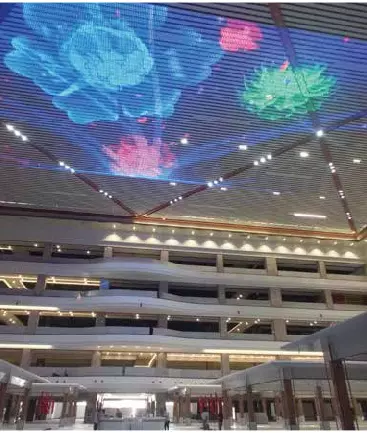

It is commonly used for making lamps for solid wall, steel structure, glass curtain wall plane or curved display screen of large indoor and outdoor buildings; Cultural tourism promotion, commercial advertising, city business card promotion and other large, medium and large display media.
Technical parameters
| Item | Parameter | |||
|---|---|---|---|---|
| Model | XH-CXG2001 | |||
| Operating Voltage | DC12V | |||
| Light Source Color | RGB | |||
| Single Pixel Power | 0.3W | |||
| Control System | DMX512 | |||
| Pixel Density | 20*20pcs | 20*16pcs | 20*12pcs | 20*10pcs |
| Pixel Pitch | 50*50mm | 50*62.5mm | 50*83.3mm | 50*100mm |
| Max Power Consumption | 120W | 96W | 72W | 60W |
| Screen Weight | 3.0kg | 2.4kg | 2kg | 1.8kg |
Safety Protection
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Housing Material | Flame-retardant PC bracket + Silicone | IP Rating | IP67 |
| Beam Angle | 160° | Flame Retardant Class | V-0 |
| Operating Temperature | -20℃ ~ +60℃ | Electrical Safety Class | Class III |
| Average Lifespan | >30000h | Impact Resistance Grade | IK10 |
| Salt Spray Test | Salt Resistance |
