Features
Large wire diameter power supply | ultra long distance energy efficiency and stability | less wiring and material saving
Screw, steel wire base, adhesive, profile | Overall encapsulated waterproof IP67 | Optical mask anti glare | Pure light color
Adhesive and screw fixing installation | convex mask self-cleaning

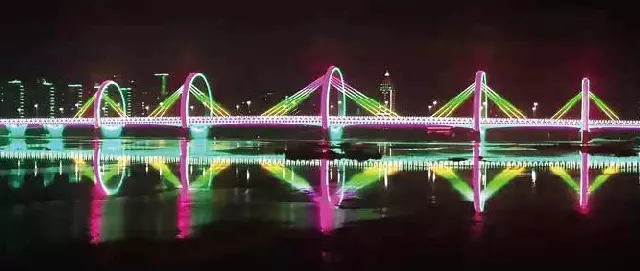

It is often used in outdoor super high-rise commercial and residential buildings, rivers, lakes, embankments and other places where lamps need to be arranged for a long distance, hotels, KTV entertainment clubs for decoration and embellishment. The transparent, semi transparent, frosted and other surface cover effects are set according to environmental requirements to prevent glare, integrating functional lighting and lighting concepts.
Technical parameters
| Item | XH-YJL10021M36 | XH-YJL10021P36 | XH-YJL10021W36 |
|---|---|---|---|
| Product Model | XH-YJL10021M36 | XH-YJL10021P36 | XH-YJL10021W36 |
| Operating Voltage | DC36V | DC36V | DC36V |
| Light Source Color | R/G/B/Y/W (1800-6500K) | RGB | RGBW |
| Power | 5W | 5W | 6W |
| Control Protocol | Constant On / Single Color On-Off | DMX512 | DMX512 |
| Luminous Flux | 15LM (6500K) | 10LM (RGB Full Color) | 10LM (RGB Full Color) |
| Dimension | Ø104×38mm | Safety Protection | |
| Housing Material | PC | Ingress Protection: IP67 | |
| Weight Per Lamp | 20g | Flame Class: V-0 | |
| Beam Angle | 160° | Electrical Safety Class: Class III | |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 | |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt Resistance |
