Product Details
Features
Overall encapsulated waterproof IP67 | bright and stable lamp bead
Profile, Installation of steel wire and adhesive | long distance energy efficiency and stability

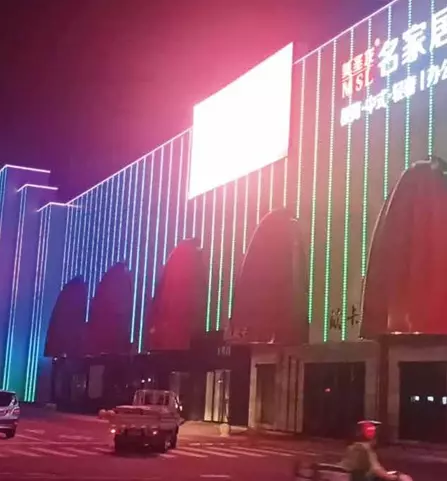

Widely used for solid wall or glass curtain wall slot joints of commercial and residential buildings, municipal buildings, bank buildings, urban commercial complexes, star hotels and other buildings; The steel cable surface of the ferris wheel shall be bundled and installed.
Technical parameters
| Item | XH-FX802306M24 | XH-FX802306P24 | XH-FX802306PRGBW24 |
|---|---|---|---|
| Product Model | XH-FX802306M24 | XH-FX802306P24 | XH-FX802306PRGBW24 |
| Operating Voltage | DC24V | DC24V | DC24V |
| Light Source Color | R/G/B/1800-6500K / Other Custom Colors | RGB | RGBW |
| Power | 1.2W | 1.5W | 2W |
| Control Protocol | Single Color On/Off | DMX512 | DMX512 |
| Luminous Flux | 40LM (Test Value @6500K) | 26LM (RGB Full Color) | 26LM (RGB Full Color) |
| Dimension | Ø66.6×19.58mm | Safety Protection | |
| Housing Material | PC | Ingress Protection: IP67 | |
| Weight Per Lamp | 30g | Flame Class: V-0 | |
| Beam Angle | 120° | Electrical Safety Class: Class III | |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 | |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt Resistance |
