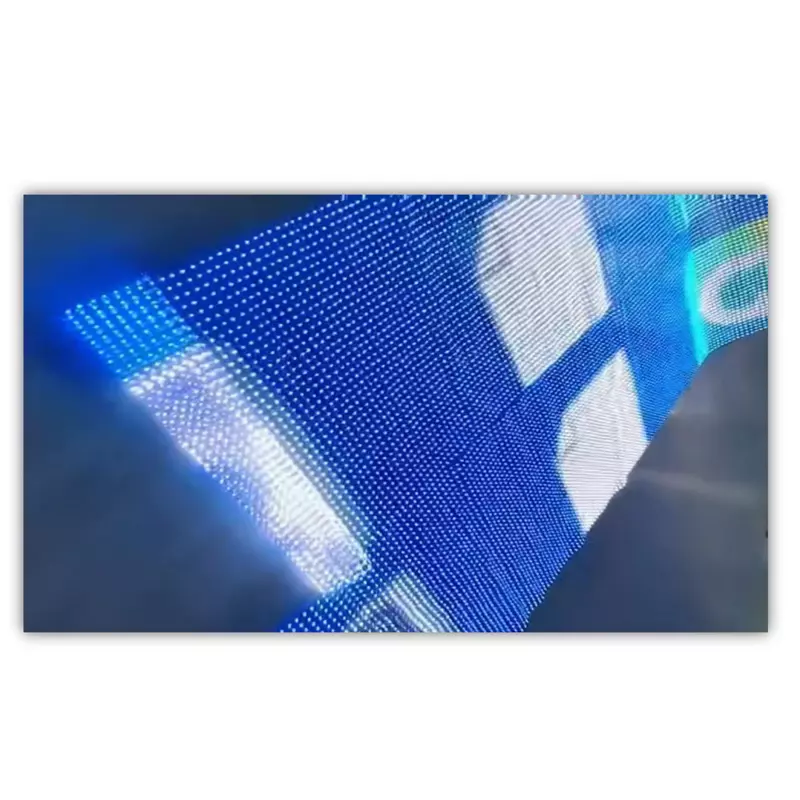

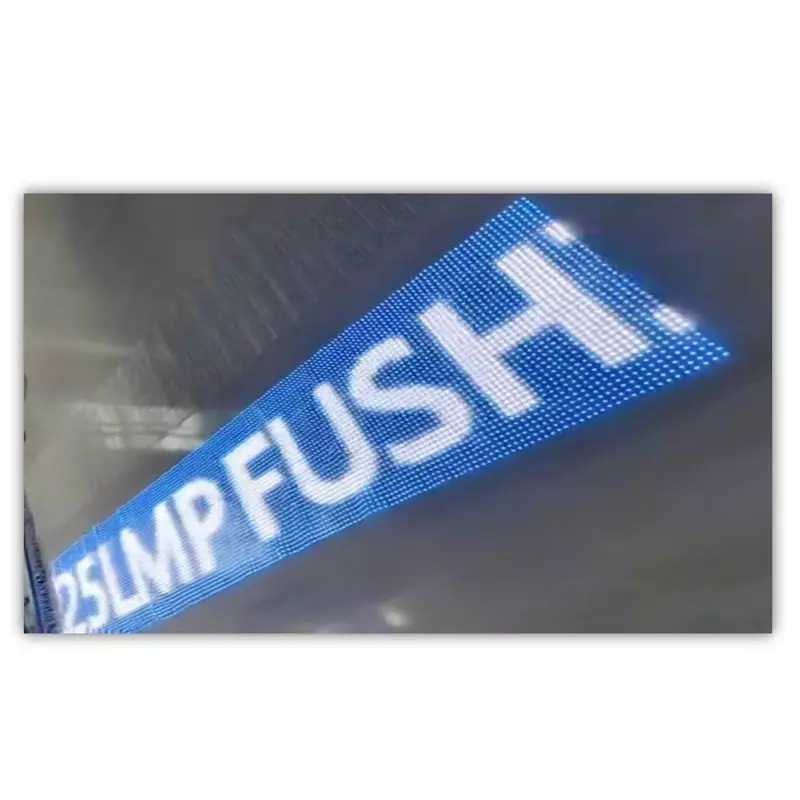

Product Introduction
The LED mesh screen is an ultra-lightweight display product, weighing only about 1kg per square meter. It supports ultra-long single-end power supply for the screen, accommodates large-area screen assemblies, and features easy installation. The screen employs a mesh array design, delivering excellent transparency and a strong senseof visual openness, seamlessly blending with
the background environment. Modules are driven and controlled at a single end, supporting flexible splicing. Its open structure ensures outstanding heat dissipation performance. An unbeatablevalue-for-money transparent display solution, ideal for urban light tunnels, glass curtain walls, cultural entertainment venues, tourism attractions, and large-scale sky screens. Its
lightweight and compact design enables efficient storage, delivering high-performance solutions for creativedisplays.
Screen Structure

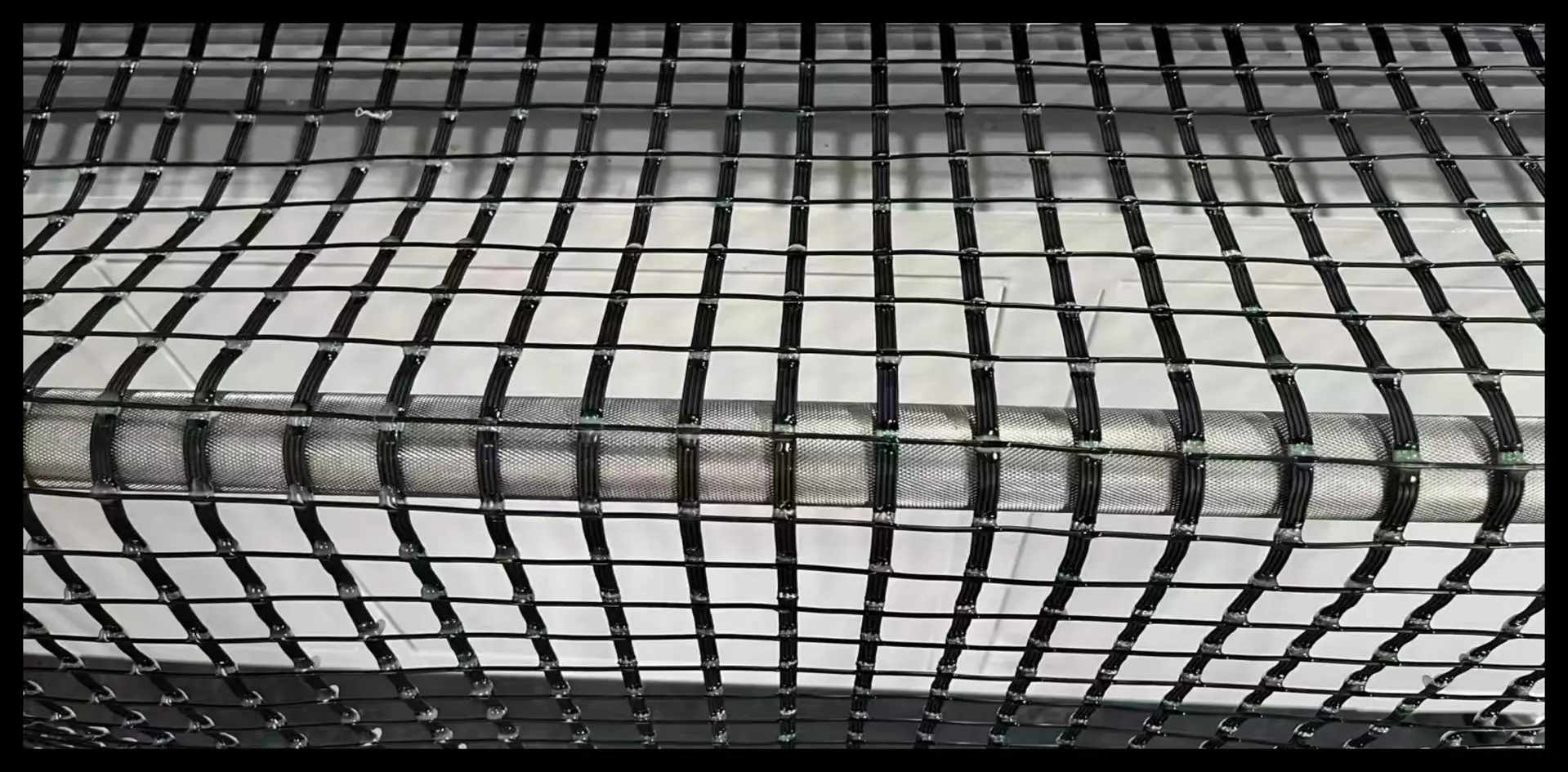

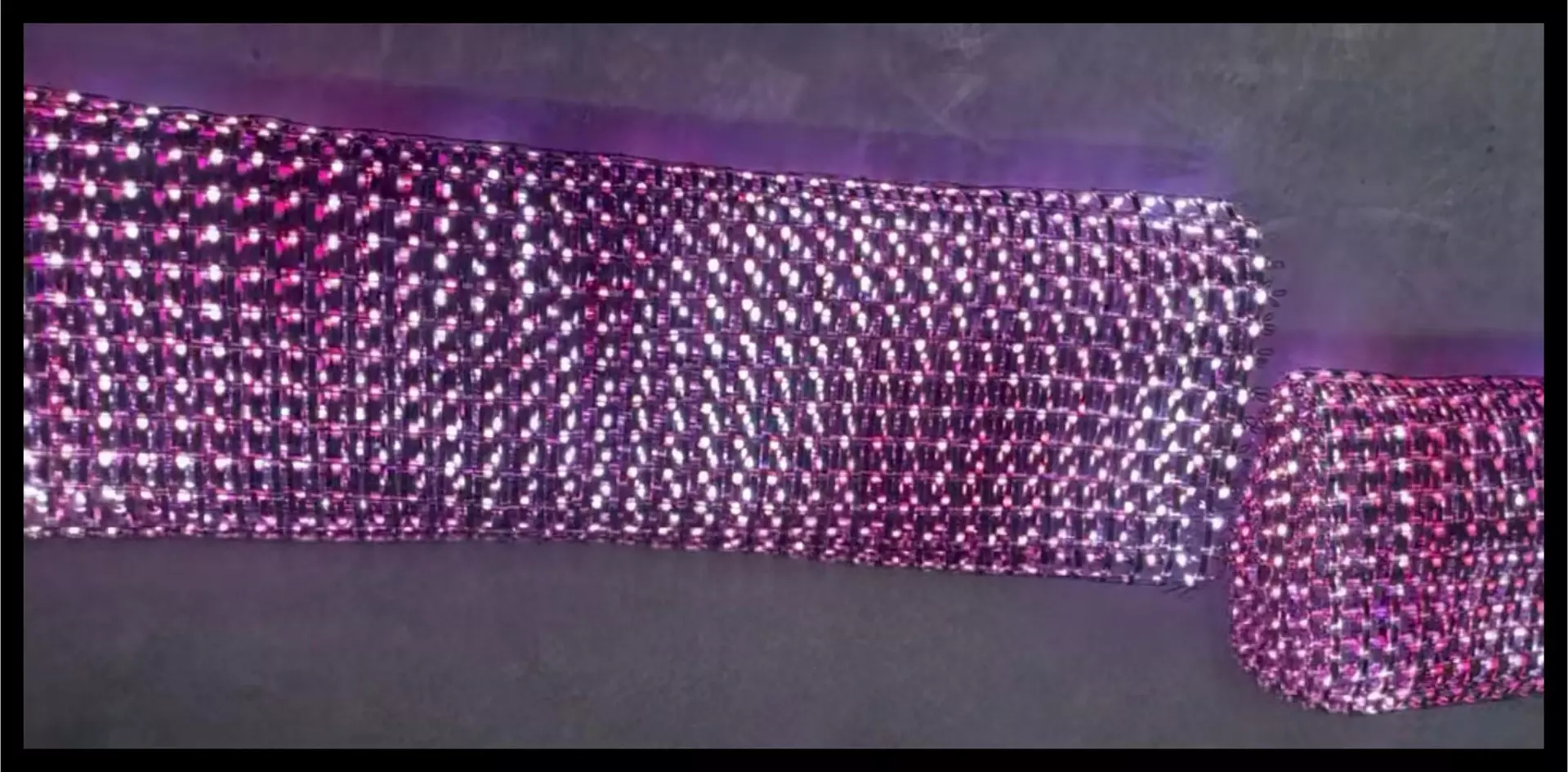

Module Exterior
Product parameters
| Parameters | Event | Unit | WD-9656F6-P15 | WD-9656F6-P20 | WD-9656F6-P25 | WD-9656F6-P30 | WD-9656F6-P50 | / |
|---|---|---|---|---|---|---|---|---|
| Module Composition | LED devices | / | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | / |
| Package Forms | / | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | / | |
| Pixel Pitch | mm | W:15; H:15 | W:20; H:20 | W:25; H:25 | W:30; H:30 | W:50; H:50 | / | |
| Module Size (H*W) | mm | 1000*2000mm (W≤1000mm customizable) | 1000*2000mm (W≤1000mm customizable) | 1000*2000mm (W≤1000mm customizable) | 1000*2000mm (W≤1000mm customizable) | 1000*2000mm (W≤1000mm customizable) | / | |
| Module Pixel | / | 66*132 | 50*100 | 40*80 | 33*66 | 20*40 | / | |
| Module Weight | Kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | / | |
| Optical parameters | Pixel density | Dots/m² | 4356 | 2500 | 1600 | 1089 | 400 | / |
| Maximum power consumption per module | W | 400 | 300 | 200 | 150 | 50 | / | |
| Viewing Angle | ° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | / | |
| Optimum Viewing Distance | m | ≥15 | ≥20 | ≥25 | ≥30 | ≥50 | / | |
| Peak Power Consumption | W/m² | 200 | 150 | 100 | 75 | 25 | / | |
| Average Power Consumption | W/m² | 60 | 45 | 30 | 25 | 10 | / | |
| Processing capability | Supply Voltage | V | DC12V | DC12V | DC12V | DC12V | DC12V | / |
| Refresh Rate | HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ | / | |
| Frame rate | HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | / | |
| Driving method | / | constant current driver | constant current driver | constant current driver | constant current driver | constant current driver | / | |
| Scanning Method | / | static | static | static | static | static | / | |
| Usage parameters | devices operating life | hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | / |
| Protection grade | / | IP65 | IP65 | IP65 | IP65 | IP65 | / | |
| Operating Temperature | ℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | / | |
| Storage Ambient Temperature | ℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | / | |
| Operating Humidity Range | %RH | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | / | |
| Storage Humidity Range | %RH | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | / |
