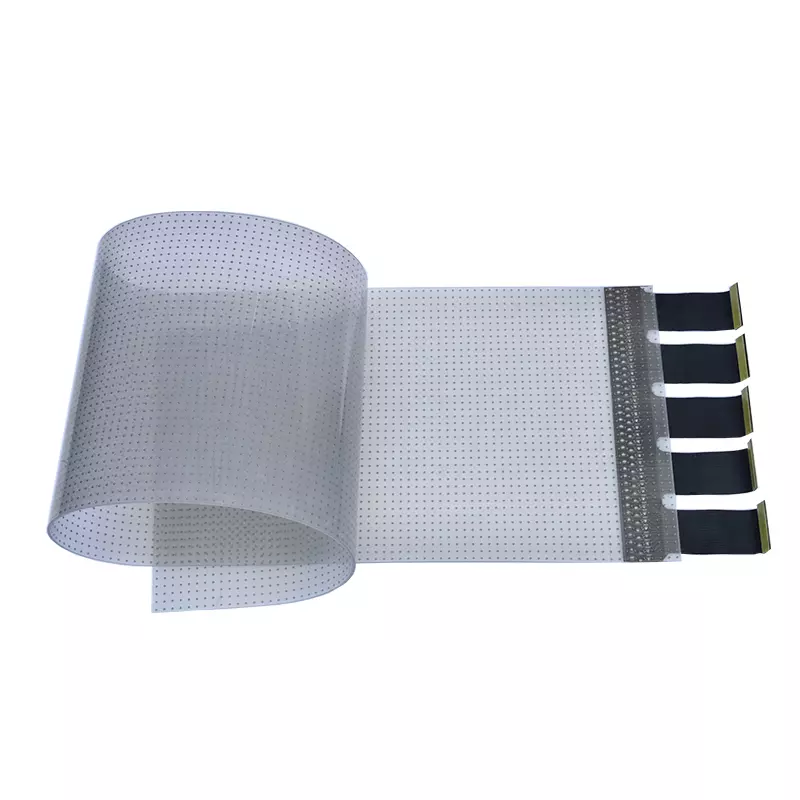

Full-Color LED Transparent Film Screen

Product Overview

The LED Crystal Film Screen (also known as LED Transparent Film Display or LED Transparent Film) is a revolutionary display solution that combines cutting-edge LED technology with ultra-thin, flexible, and highly transparent film material. Unlike traditional rigid LED screens, this innovative product can be directly applied to glass surfaces, turning ordinary windows, glass curtain walls, and transparent partitions into dynamic, high-definition visual canvases without compromising natural light or architectural aesthetics.

Manufactured using advanced bare crystal planting technology, the screen features transparent mesh circuits etched onto high-temperature resistant PET film, with components sealed through a vacuum encapsulation process. The result is a display that is virtually invisible when turned off yet delivers stunning, vibrant full-color visuals when activated.

Key Features

Exceptional Transparency – With transparency rates ranging from 70% to 95% depending on the model, the LED Crystal Film Screen maintains clear visibility through the display surface, allowing natural light to pass through while delivering vivid content. When turned off, the screen blends seamlessly into the glass, leaving no visible trace.

Ultra-Thin & Lightweight – Measuring only 1.35mm to 3mm in thickness and weighing as little as 1kg to 3.5kg per square meter, this display is remarkably slim and easy to handle. Its lightweight construction eliminates the need for heavy steel support structures, significantly reducing installation costs and structural burden.

Flexible & Cuttable – The screen can be bent, rolled, and curved to fit any surface, including curved glass with radii up to 2,000R. It supports on-site cutting with a standard utility knife, allowing installers to customize the size and shape to meet specific project requirements without limitations.

High Brightness & Daylight Visibility – With brightness levels ranging from 1,000 nits to over 4,000 nits, the display delivers crisp, vibrant visuals even under direct sunlight. This makes it suitable for both indoor and semi-outdoor applications where natural light is abundant.

Energy Efficiency – Leveraging advanced LED technology, the Crystal Film Screen consumes significantly less power than traditional displays, with average power consumption as low as 200W per square meter. This translates to lower operating costs and a reduced environmental footprint.

Self-Adhesive & Easy Installation – The screen features a built-in industrial-grade adhesive layer that allows for direct application to glass surfaces without the need for complex brackets, steel frames, or structural modifications. Installation is as simple as peeling off the protective film, positioning the screen, and connecting power and signal.

Breakpoint Continuation – Advanced signal transmission design ensures that if a single pixel fails, it does not affect the rest of the display. The dual-signal line cross-transmission scheme automatically bypasses faulty points, maintaining overall display integrity.

Wide Viewing Angle – With viewing angles up to 160° horizontally and vertically, the display ensures clear, color-accurate visuals from virtually any perspective, eliminating dead zones and color deviation.

High Grayscale & Color Performance – Supporting up to 16-bit grayscale and 32-level current linear adjustment, the screen delivers exceptionally smooth color transitions and true-to-life image reproduction, making it ideal for high-end advertising and video playback.

Technical Specifications

Applications

The LED Crystal Film Screen is ideally suited for a wide range of transparent surface environments:

• Building Glass Curtain Walls – Transform high-rise facades into dynamic media displays without obstructing the view or compromising architectural integrity

• Retail Storefronts & Shop Windows – Turn windows into interactive advertising spaces that attract customers while maintaining visibility into the store

• Shopping Malls & Commercial Plazas – Enhance common areas, atriums, and glass railings with eye-catching digital content

• Exhibition Halls & Museums – Create immersive, interactive displays on glass cases and exhibit panels

• Hotels & Entertainment Venues – Add dynamic visual elements to lobbies, glass partitions, and decorative features

• Elevators & Escalators – Install on glass elevator shafts and escalator barriers for engaging advertising and wayfinding

• Corporate Office Lobbies – Impress visitors with dynamic brand messaging on glass walls and partitions

Customization & Support

Shanghai Changshuo Lighting offers comprehensive customization services for the LED Crystal Film Screen, including:

• Non-standard sizing – Custom dimensions to fit any glass surface

• Pixel pitch selection – From P5 to P20 to match viewing distance requirements

• Brightness adjustment – Tailored to indoor, semi-outdoor, or high-ambient-light environments

• Shape customization – Support for curved, angled, and irregular installations

• OEM/ODM services – Full product development and manufacturing for special projects

With over 20 years of LED application experience, our technical team provides end-to-end support from solution design and budget planning to installation guidance and after-sales service. Contact us today to discuss your project requirements.
