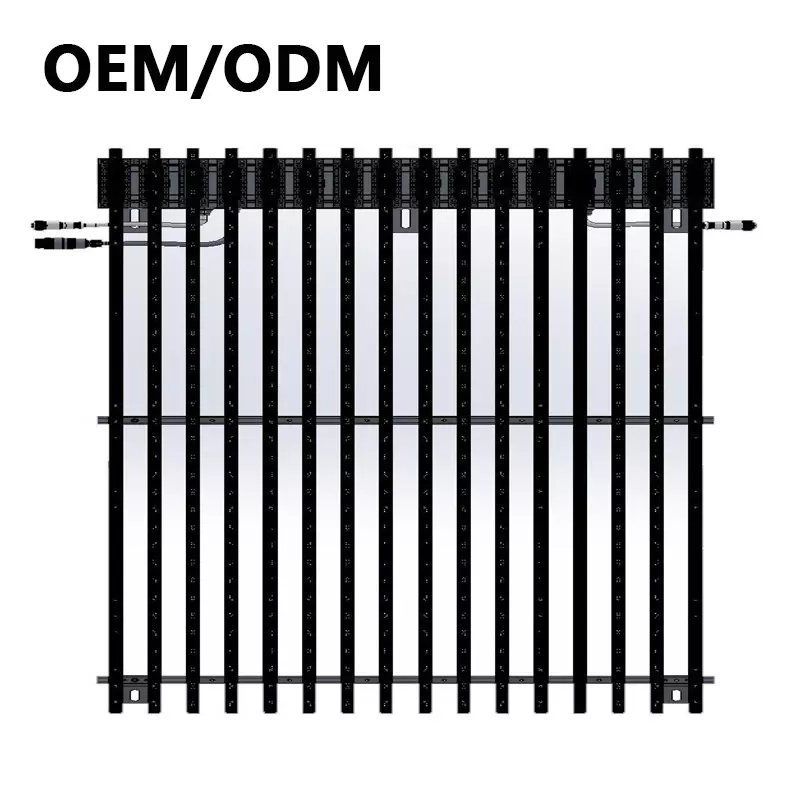

Ttransparent LED display OEM ODM custom

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Product parameters

Product Model	GC10.4	GC15.6	GC15.6-31.25	GC20	GC25	GC25-50	GC31.25
LED lamp beads	1*SMD2727	1*SMD2727	1*SMD2727	1*SMD2727	2*SMD2727	2*SMD2727	2*SMD2727
Pixel pitch H/V (mm)	10.416-10.416	15.6-15.6	15.6-31.25	20-20	25-25	25-50	31.25-31.25
Enclosure Resolution (W*H)	96*48	64*32	64*16	50*24	40*40	40*20	32*16
Enclosure Dimensions (mm) (W*H)	100050076	100050076	100050076	100048076	100050076	100050076	100050076
Cabinet area (m²)	0.5	0.5	0.5	0.48	0.5	0.5	0.5
Cabin Weight (Kg/pc)	9±0.5	8±0.5	6±0.5	6±0.5	6±0.5	5±0.5	6±0.5
Pixel density (Dots/m²)	9216	4096	2048	2500	1600	800	1024
White Balance Brightness (cd/m²)	1000~6000	1000~6000	1000~6000	1000~6000	1000~6000	1000~4000	1000~5000
Horizontal Field of View	140±10°	140±10°	140±10°	140±10°	140±10°	140±10°	140±10°
Vertical Field of View	140±10°	140±10°	140±10°	140±10°	140±10°	140±10°	140±10°
Transmittance	40%	33%	66%	48%	58%	79%	66%
Brightness uniformity	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%
Peak power consumption (W/m²)	720	720	600	720	600	400	500
Average power (W/m²)	260	260	220	260	220	150	180
Input power	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)	AC200-240V (47-63HZ)
Refresh rate (HZ)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Frame rate (HZ)	60	60	60	60	60	60	60
Drive Method	Constant Current Drive / Static	Constant Current Drive / Static	Constant Current Drive / Static	Constant Current Drive / Static	Constant Current Drive / Static	Constant Current Drive / Static	Constant Current Drive / Static
Typical service life (hrs)	100000	100000	100000	100000	100000	100000	100000
Operating Temperature Range (℃)	-40~+50	-40~+50	-40~+50	-40~+50	-40~+50	-40~+50	-40~+50
Storage Temperature Range (℃)	-40~+60	-40~+60	-40~+60	-40~+60	-40~+60	-40~+60	-40~+60
Operating Humidity Range (RH)	10%-80% No condensation	10%-80% No condensation	10%-80% No condensation	10%-80% No condensation	10%-80% No condensation	10%-80% No condensation	10%-80% No condensation
Storage Humidity Range (RH)	10%-90% No condensation	10%-90% No condensation	10%-90% No condensation	10%-90% No condensation	10%-90% No condensation	10%-90% No condensation	10%-90% No condensation
